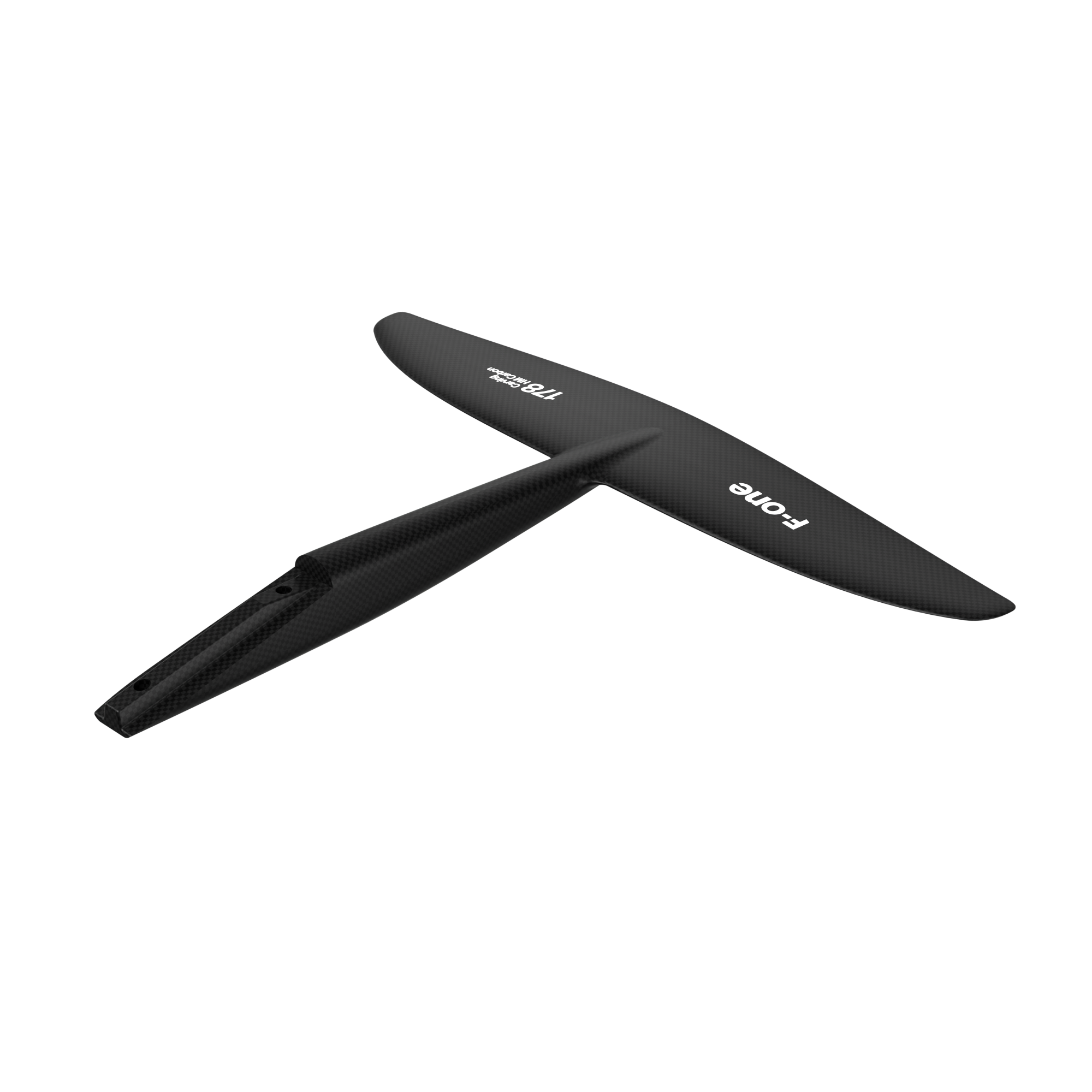

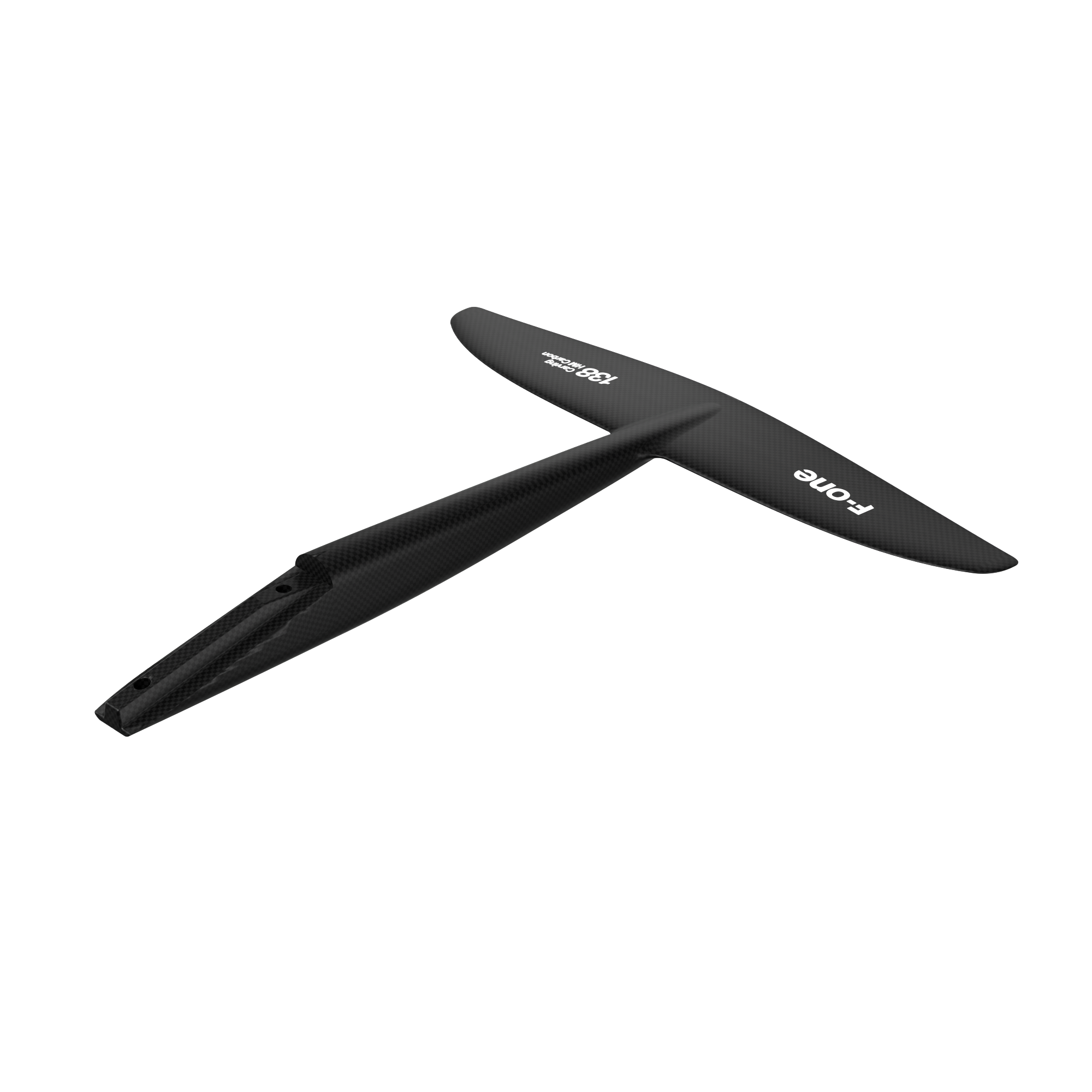

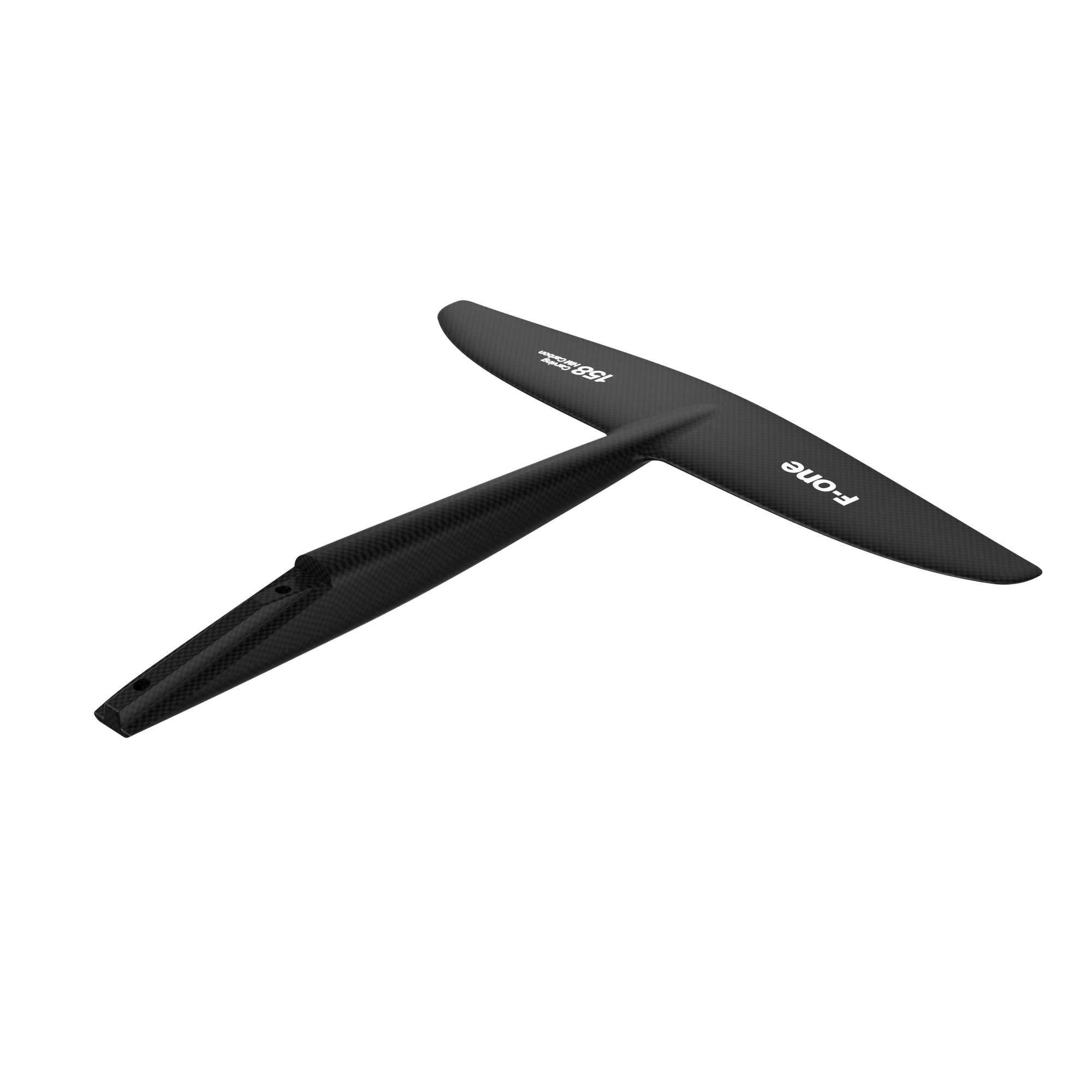

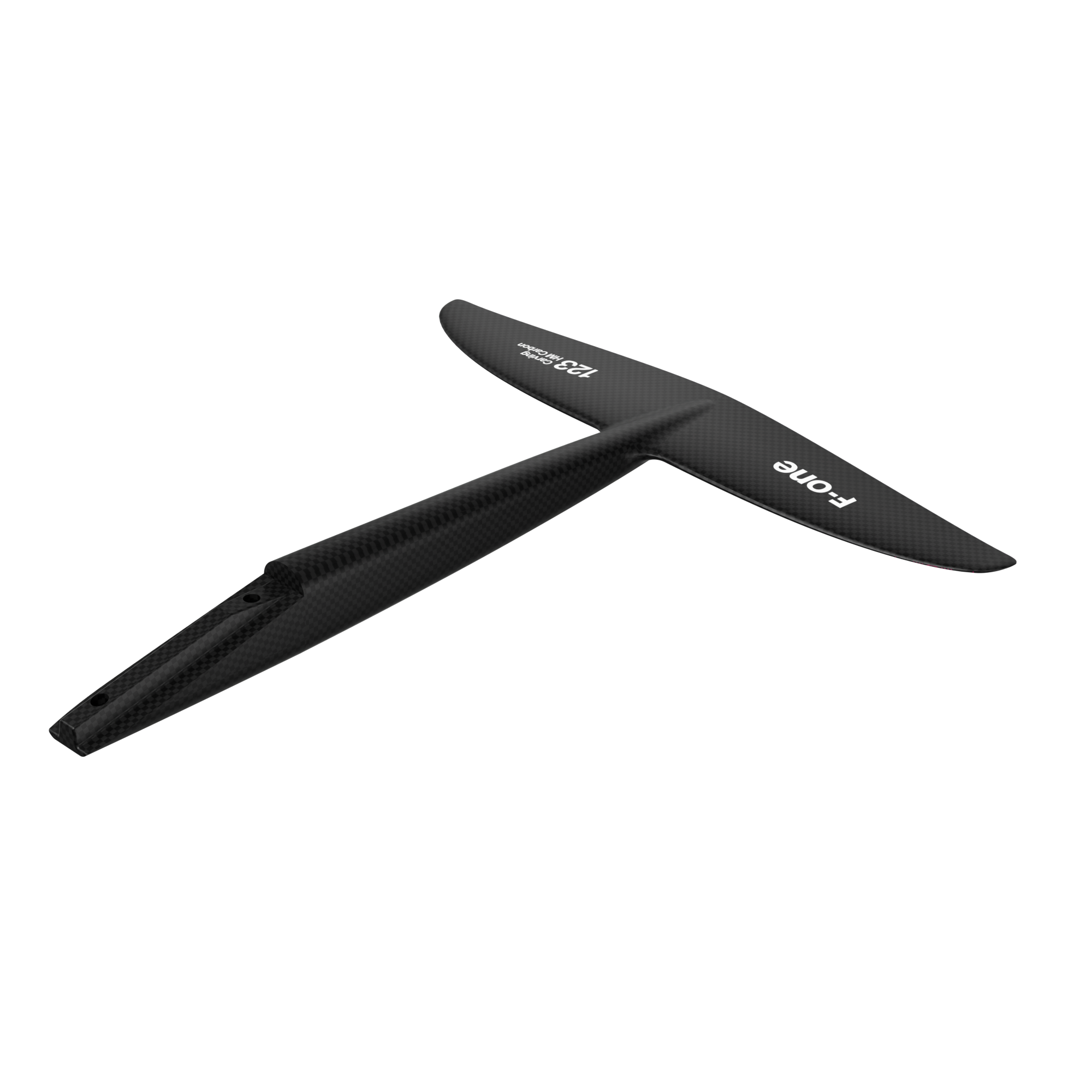

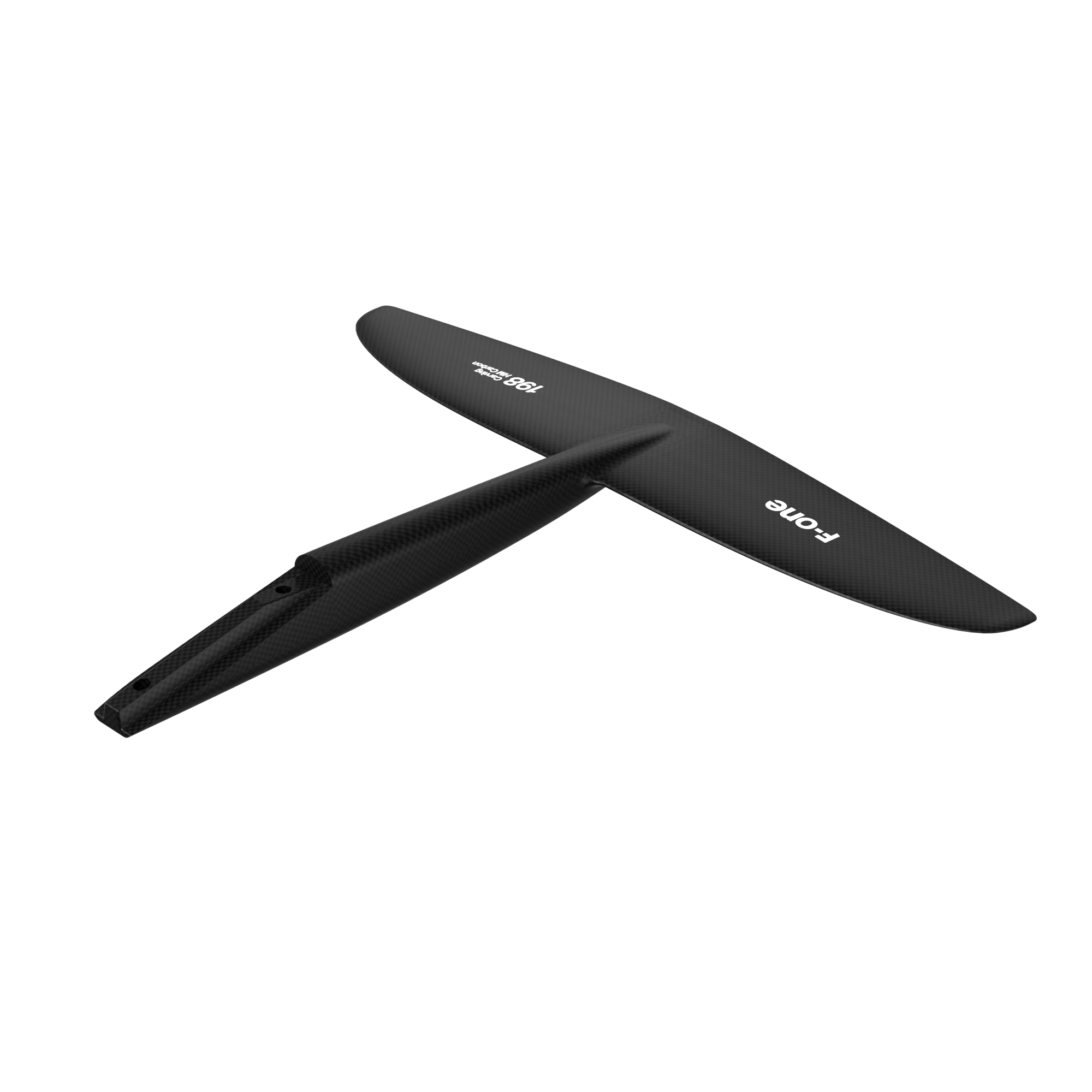

MONOBLOC TAIL CARVING V2

Regular price £325.00

The new Monobloc Tail Carving range brings together the best of the Carving and Carving W ranges into a single, redesigned, more versatile, high-performance tail. With a revised, tighter outline, this tail delivers exceptional maneuverability, speed, efficient pumping and sharp turns.

  • New, refined outline for better glide and maneuverability
  • Balanced feel between front and back foot for more comfort and powerful carves
  • Fast, responsive pumping
  • Steady lift, stability, and snappy turns

Available in 123 XS cm² / 138 XS cm² / 158 XS cm² / 178 XXS cm²/ 198 XXS cm² / 158 XXXS cm²
Ref.
 77267-0300 / 77267-0301 / 77267-0302 / 77267-0303 / 77267-0304 / 77267-0305

Size 138 XS

Technical Specifications

Designed to excel in every carve and transition, this tail offers the pumping efficiency and the playful, loose feel of the original Carving range, with the added stability, control at high speed, and comfort of the Carving W. It brings easy, responsive pumping on flat sections, while its glide is tuned to let you hold speed and flow effortlessly through your lines.

The new outline provides improved maneuverability and glide, giving you the confidence to push harder, carve tighter, and ride faster, even in powered conditions.

The longer fuselage increases pitch stability, enabling you to go into the turns with confidence. The reduced surface area also contributes to greater speed, responsiveness, and maneuverability, which makes it easier to carve and stay tighter in the pocket of the wave.

From wing foiling to surf foiling, K-Winging and pocket winging, the new Monobloc Tail Carving delivers the perfect blend of maneuverability, control, reactivity, and playfulness. A truly versatile design for riders who want it all, in every session and condition.

HM

The High Modulus Carbon fiber layup is 1.5x stiffer than the regular carbon fiber used in other constructions. The percentage of high modulus fiber has been carefully adjusted to obtain the best stiffness in both bending and torsion while keeping enough comfort for any kind of practice.

MONOBLOC TAIL

The monobloc construction improves stiffness and reduces turbulence by eliminating connections and providing a more streamlined design. This premium connection will make any foil more playful, more stable, and faster. The monobloc also removes two screws; you’ll be on the water faster!

The connection of the front wing with the fuselage is highly stressed and loaded, so it is one of the critical areas of the assembly in terms of structures.

The Monobloc front wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.

The structural fibers of the fuselage are spread into the wing to achieve the smoothest and lightest connection.

It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders’ input.

When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.

AREA (cm²) SPAN (cm) ASPECT RATIO WEIGHT (kg)

123 XS  CARVING

123 30 7.3

138 XS CARVING

138 31 7.0 0,24

158 XS CARVING

158 33 6.9 0,24

178 XXS CARVING

178 35 6.9

198 XXS CARVING

198 37 6.8 0,25

158 XXXS CARVING

158 33 6.9 0,27
MONOBLOC TAIL 123 XS CARVING 138 XS CARVING 158 XXXS CARVING 158 XS CARVING 178 XXS CARVING 198 XXS CARVING
FW

Recommended first choice
SUSHI 620
SUSHI 680


SUSHI 740
SUSHI 820

SK8 550
SK8 650
SK8 750

EAGLE 690
EAGLE 790

SUSHI 920
SUSHI 1020
SK8 850
SK8 950EAGLE 890
EAGLE 990
SK8 1050

SEVEN SEAS 1100
SEVEN SEAS 1200
SEVEN SEAS 1300

EAGLE 1090
EAGLE 1190

SK8 1150

SEVEN SEAS 1400
SEVEN SEAS 500
SEVEN SEAS 1600

EAGLE 1290

FW

Second choice depending on the rider’s level and the chosen discipline
SK8 850
SK8 950EAGLE 890
EAGLE 990
SK8 750
SK8 1050EAGLE 1090
SK8 950
SK8 1150
SK8 1050
ITEMS

MONOBLOC TAIL CARVING

Soft cover

Packaging kit :

  1. Screws : 2x M6-25mm tapered head screws

2026 HYDROFOILS CARBON

2026-USER-GUIDE-HYDROFOIL-CARBON.pdf
